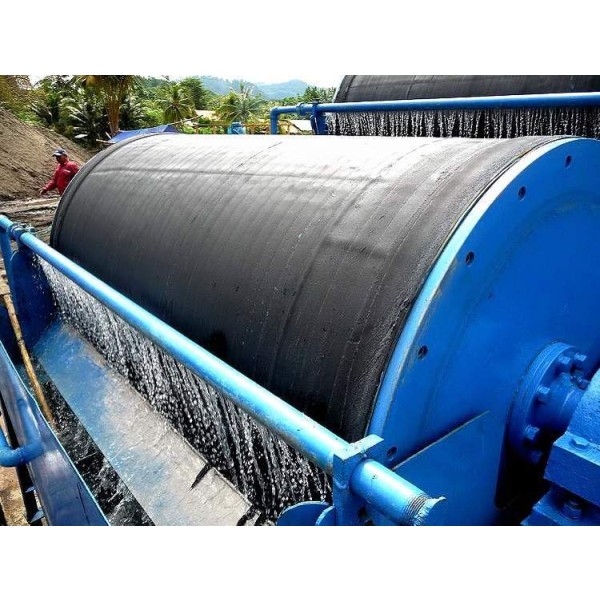

CTS(N.B) series permanent magnet wet magnetic separator is a high-efficiency equipment designed for sorting fine-grained strong magnetic minerals. This series of equipment adopts high-performance neodymium-iron-boron (NdFeB) rare-earth permanent magnetic material to construct the magnetic system, which has the characteristics of high magnetic field strength, stable magnetic field, excellent sorting efficiency and strong adaptability. It is widely used in the selection and purification of magnetic minerals such as iron ore, manganese ore, etc., as well as the iron removal and purification of non-metallic minerals such as quartz sand, feldspar, kaolin, etc., which is an indispensable key equipment for modernized mineral processing plant.
After the slurry enters the sorting tank, the magnetic mineral particles are adsorbed on the surface of the rotating magnetic separation drum under the action of powerful and reasonable gradient magnetic field. As the drum rotates, the magnetic minerals are taken out of the magnetic field area, and under the action of flushing water, they are separated from the drum and become concentrate. The non-magnetic (weakly magnetic) minerals are not affected by the magnetic field, and are discharged from the other end of the tank with the slurry flow to become the tailings, thus realizing the efficient separation of magnetic and non-magnetic minerals.
According to the structure of magnetic system:
Fixed magnetic system: simple structure, convenient maintenance, suitable for wet sorting of fine particles of strong magnetic minerals.
Rotary Magnetic System: with high number of magnetic tumbling, it can effectively throw off the intermingled concretions and pulsates, with higher sorting precision, and is suitable for dry sorting of fine-grained strong magnetic minerals.
According to the type of tank (determines the sorting characteristics and applicable particle size):
| Tank Type | Applicable Grain Size | Characteristics and Typical Applications |
| :--- | :--- | :--- | :--- | :--- | :--- | :--- | :--- | :---
| Downstream Tanks (CTS) | 6 - 0 mm | High capacity, suitable for roughing and concentrating operations, low tailings grade. |Low tailings grade.
| Countercurrent Trough (CTN) | 0.6 - 0 mm | High recovery, suitable for fine mineral concentrating and heavy media recovery. |Semi-Countercurrent Trough (CTN)
| Semi Countercurrent Bath (CTB) | 0.5 - 0 mm | High concentrate grade, suitable for high precision concentrating of ultra fine minerals. | | Semi-Countercurrent Bath (CTB) | 0.5 - 0 mm
High performance magnetic system:
Adopting NdFeB permanent magnetic material, the surface magnetic field strength is up to 1500-6000 GS.
Computer optimized magnetic circuit design, large magnetic field depth, reasonable gradient, good sorting effect.
Ten-year decay rate of magnetic performance < 3%, stable performance and long life.
Intelligent sorting control:
Cylinder speed is stepless adjustable (10-50 rpm), flexibly adapting to different minerals and particle size requirements.
Slurry flow and level can be precisely controlled to optimize sorting conditions.
Optional automatic flushing system ensures stable concentrate grade.
Durable structure design:
The surface of the drum is covered with stainless steel or wear-resistant rubber, which is corrosion and abrasion resistant.
The lining of the tank is UHMW-PE, which is wear-resistant and anti-adhesive.
The transmission system adopts IP54 protection grade, adapting to the humid and harsh environment, reliable operation.
| Parameter | CTB (semi-countercurrent) type | CTS (Downstream) | CTN (Countercurrent) |
|---|---|---|---|
| Drum size (diameter × length mm) | Φ600-1200 × 800-3000 | Φ600-1200 × 800-3000 | Φ600-1200 × 800-3000 |
| Processing capacity (t/h) | 5 - 100 | 10 - 120 | 5 - 80 |
| Feed concentration (%) | 20 - 35 | 25 - 40 | 15 - 30 |
| Motor power (kW) | 3 - 22 | 3 - 22 | 3 - 18 |
| Application Scenarios | Recommended Models and Configurations |
|---|---|
| Iron Ore Concentration | CTB type semi-countercurrent tank, magnetic field strength 4000-5000GS, cylinder speed 20-30rpm. |
| Quartz sand iron removal | CTN type countercurrent tank, magnetic field strength 3000-4000GS, feed size should be controlled at <0.3mm. |
| Manganese ore roughing | CTS type downstream tank, magnetic field strength 3500-4500GS, processing capacity can be increased by about 20% compared with other tanks. |
High efficiency sorting: powerful rare earth magnetic system and optimized tank design ensure high recovery and high concentrate grade.
Stability and Durability: High quality materials and wear-resistant design ensure long service life and low failure rate under severe working conditions.
Flexible and Intelligent: Adjustable speed and controllable parameters, intelligent options to meet the needs of refined production.
Professional adaptation: three types of tanks and a variety of specifications, can be customized for you the most economical solution.
Easy Maintenance: Modularized design makes routine maintenance and inspection simple and convenient, effectively reducing operating costs.
