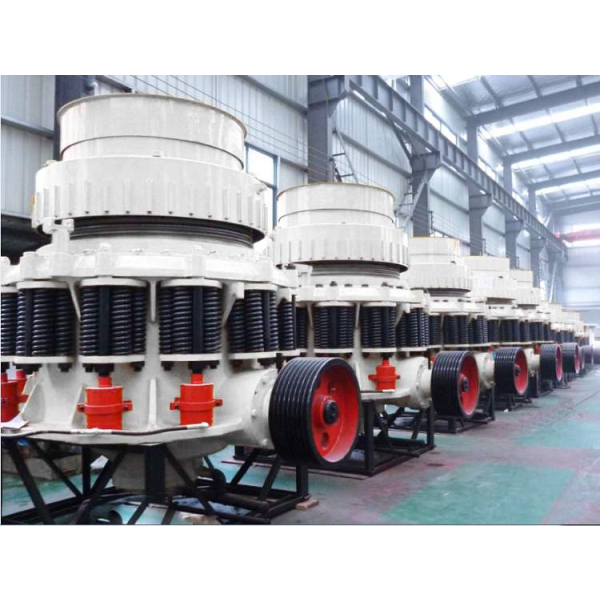

Spring Cone Crusher

Product Overview

Hydraulic Cone Crusher is a high-performance core equipment for medium and fine crushing stages in the field of mining crushing. It adopts advanced laminar crushing principle and intelligent hydraulic technology, and is capable of efficiently processing all kinds of medium and high hardness materials such as granite, basalt, iron ore, copper ore, etc. It has become a modern sand and gravel aggregate crusher with its high crushing efficiency, stable operation, excellent finished particle shape and automation. With its high crushing efficiency, stable operation, excellent grain shape of finished products and high degree of automation, it has become an indispensable key equipment for modern sand and gravel aggregate production lines and mineral processing plants, and is widely used in metallurgy, construction, road building, chemical industry and other industrial fields.

Working Principle

1. Material Entry: The ore enters into the crushing chamber formed by the dynamic cone and the fixed cone evenly through the feeding device.

2. Laminar crushing: the dynamic cone is driven by the eccentric sleeve to do regular rotary oscillation movement, constantly squeezing and bending the material in the crushing cavity. The materials are squeezed, impacted and bent many times between the moving cone and the fixed cone, realizing efficient "stone hitting stone" laminar crushing.

3. Continuous crushing and discharging: the crushed materials go down under the effect of gravity and experience several crushing cycles. The materials that reach the set size requirement are finally discharged from the discharge port at the bottom of the crushing chamber; the materials that do not reach the requirement continue to stay in the chamber to be crushed.

Core Advantages and Features

• 🎯 Highly efficient laminar crushing: adopting unique laminar crushing principle instead of single impact or extrusion, the material is crushed several times in the chamber, with high crushing efficiency, which can significantly increase the throughput capacity of the whole production line.

• ⚡ Excellent finished product particle shape: the particles produced by laminated crushing are mostly cubic, with low needle and flake content, and the product particle size is uniform and of very high quality, which is especially suitable for high-standard construction aggregates and engineering materials.

• 🛡️ Intelligent hydraulic system with automatic control:

  • Hydraulic Adjustment of Discharge Opening: Easily realize remote adjustment and control of discharge opening to change the product granularity quickly and precisely.

  • Over-iron protection function: when the unbreakable objects (such as iron) enter into the cavity, the hydraulic system can automatically release and reset after discharging the foreign objects, which effectively protects the core parts of the host and reduces the loss of downtime.

  • Intelligent control system: real-time monitoring of spindle position, motor load, lubricating oil temperature and other parameters, to realize automatic operation and fault diagnosis, to ensure that the equipment is in the best working condition.

• 🔧 Stable operation and convenient maintenance:

  • Sturdy structure: the main components adopt high-strength cast steel parts and heavy-duty frame to ensure the stability and long service life of the equipment under heavy-duty working conditions.

  • Automatic lubrication system: Equipped with an independent thin oil lubrication station to ensure that the bearings and other key transmission parts are fully lubricated, low maintenance workload and high reliability.

• 💡 Economical and energy-saving: Under the same processing capacity and product size, compared with traditional crushing equipment, the energy consumption is lower, and the comprehensive operation cost is more advantageous.

Technical parameters (example)

Note: There are many models of Cone Crushers, which are usually distinguished by cavity type (e.g. standard, medium, short head) and diameter. The following are common parameters.

Applicable Materials and Sectors

• Applicable materials: medium and high hardness o res and rocks, such as granite, basalt, quartzite, iron ore, pyrophyllite, river pebbles, etc.

• Core application:

  • Mining: secondary and tertiary crushing of metal and non-metal ores.

  • Sand and gravel aggregate: production of high quality mechanism sand and various specifications of crushed stone.

  • Infrastructure construction: providing high-quality aggregates for highways, railroads, hydropower projects, etc.

  • Industrial pulverizing: providing raw materials with qualified particle size for grinding mills.

Why choose our hydraulic cone crusher?

• Leading technology: Combining advanced laminated crushing technology and intelligent hydraulic control system to ensure the performance of the equipment at the forefront of the industry.

• Guaranteed Reliability: The key components are made of high quality materials and high-precision manufacturing process, so the durability of the equipment far exceeds the industry standard, and the trouble-free operation time is long.

• Full Life Cycle Service: We not only provide equipment, but also provide all-round support from selection and design, installation and commissioning, operation training to spare parts supply, maximizing your return on investment.

• Customized solutions: According to your specific material characteristics, capacity needs and product requirements, we will recommend the most suitable cavity type and configuration for you to achieve the optimal crushing effect.
