Product Overview

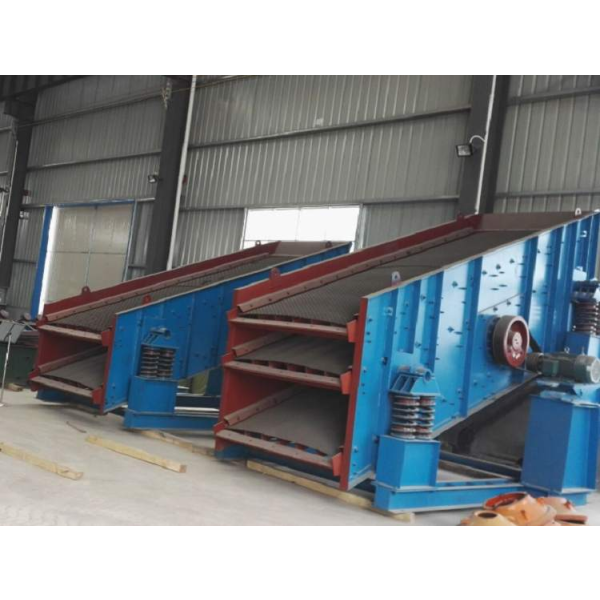

YK series circular vibrating screen is a kind of high-efficiency screening equipment with advanced structure and excellent performance. Its vibration trajectory is nearly circular, and it adopts the mature block eccentric exciter principle, which is characterized by large processing capacity, high screening efficiency, smooth and reliable operation. Specially designed for quarry, mining, building materials, coal, electric power and chemical industry, it is suitable for grading medium and fine-grained materials, and is an indispensable core equipment in crushing and screening production line.
When screening wet and sticky materials or using small aperture screen mesh, it can be equipped with spraying system to improve screening efficiency.
Working Principle
The motor drives the eccentric block in the vibration exciter to rotate at high speed through the triangle belt, which generates strong centrifugal force and forces the screen box to do approximate circular reciprocating motion. The material on the screen surface is thrown up under the action of the excitation force, and makes parabolic movement forward. In this process, the particles smaller than the screen holes quickly pass through the screen, thus realizing the efficient classification of materials.
Core advantages and features
-
⚡ High efficiency and large capacity: optimized kinetic design, the material flows smoothly on the screen surface, the screening speed is fast, and the processing capacity is advanced in the industry.
-
🔧 Convenient maintenance, durable:
-
Adopting cylinder type eccentric shaft exciter, compact structure, strong excitation force, and the amplitude can be conveniently adjusted by adjusting the bias block.
-
Advanced rivet connection assembly frame, high strength, long life, easy transportation and on-site installation.
-
🔇 Smooth operation and low noise:
-
Tire coupling realizes soft connection, effectively absorbing vibration shock and smooth transmission.
-
The spring damping device isolates most of the dynamic load transmitted to the foundation, so the equipment runs more smoothly and the noise is significantly reduced.
-
🛡️ Long-life screen mesh: spring steel woven screen mesh or perforated screen plate is optional, with strong wear resistance, high fatigue resistance, and special design effectively reduces the probability of clogging.
-
🎯 Clear grading: strong vibration of the screen surface, the material throwing movement is intense, effectively preventing the particles from sticking together, clear grading of products of various particle size levels, high efficiency.
Technical Parameter Table
| Specification Model |
Layers of screen mesh |
Hole size (mm) |
Maximum feed size (mm) |
Vibration frequency (r/min) |
Double amplitude (mm) |
Installation angle (°) |
Handling capacity (t/h) |
Motor power (Kw) |
| 3YK1230 |
3 |
3-50 |
< 200 |
800-970 |
8-10 |
20 |
12 - 120 |
5.5 |
| 3YK1336 |
3 |
6-50 |
< 200 |
970 |
8-10 |
20 |
15 - 160 |
11 |
| 3YK1548 |
3 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 250 |
15 |
| 3YK1848 |
3 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 300 |
18.5 |
| 3YK1860 |
3 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 350 |
22 |
| 3YK2160 |
3 |
5-100 |
< 200 |
730 |
8-10 |
20 |
100 - 500 |
30 |
| 3YK2460 |
3 |
5-150 |
< 200 |
730 |
8-10 |
20 |
150 - 700 |
30 |
| 3YK2770 |
3 |
5-150 |
< 200 |
730 |
8-10 |
20 |
200 - 800 |
30×2 |
| 4YK1548 |
4 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 250 |
18.5 |
| 4YK1848 |
4 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 300 |
22 |
| 4YK1860 |
4 |
5-80 |
< 200 |
970 |
8-10 |
20 |
50 - 350 |
22 |
| 4YK2160 |
4 |
5-100 |
< 200 |
730 |
8-10 |
20 |
100 - 500 |
30 |
| 4YK2460 |
4 |
5-150 |
< 200 |
730 |
8-10 |
20 |
150 - 700 |
37 |
| 4YK2770 |
4 |
5-150 |
< 200 |
730 |
8-10 |
20 |
200 - 800 |
30×2 |
Note: The above processing capacity data is based on medium-density materials and specific screening conditions, the actual output may vary depending on the material characteristics (humidity, density, viscosity, etc.) and screen configuration.
Application fields
-
Mining industry: size classification after crushing of iron ore, copper ore, gold ore, etc.
-
Quarrying and Aggregate: accurate grading and separation of crushed stone and mechanism sand in gravel plant.
-
Coal industry: grading of raw coal, dewatering and de-mediation in coal washing plant.
-
Building materials and chemical industry: screening of quartz sand, feldspar, fertilizer, plastic granules and other materials.
-
Power industry: prior classification of coal in coal-fired power plants.
Why choose our circular vibrating screen?
-
Mature and reliable structure: market-proven exciter and frame design, low failure rate, strong continuous operation capability.
-
Comprehensive model coverage: from small to medium output to large production line, we provide a variety of specifications to meet different customer needs.
-
Excellent price/performance ratio: while ensuring advanced performance indicators at home and abroad, we strictly control the cost and selling price to provide you with a super high return on investment.
-
Professional customized service: according to your specific working conditions and special needs, we can provide customized solutions such as screen material, number of layers, spraying system and so on.
