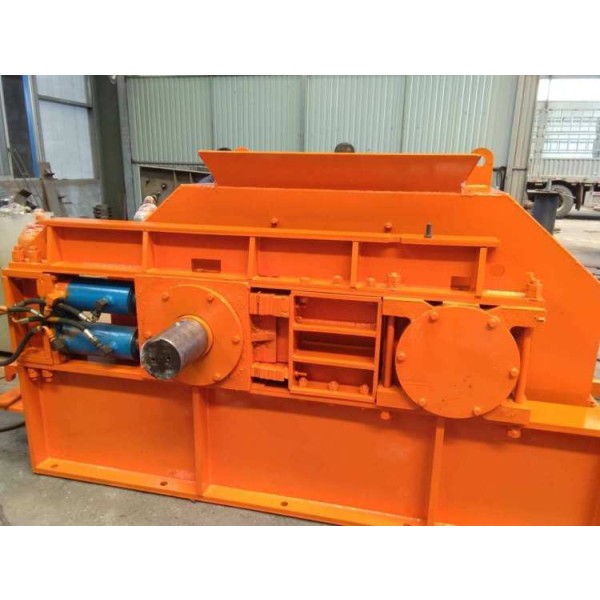

Product Overview
Double Roll Crusher (Roll Crusher) is a classic medium and fine crushing equipment which adopts the principle of extrusion and shearing. It is suitable for crushing hard, medium-hard and soft materials with compressive strength less than 300MPa and moisture content less than 35%. With its simple structure, convenient maintenance, low over-crushing rate and even product size, this equipment is widely used in mining, thermoelectricity, cement, ceramics, metallurgy, chemical industry, building materials and other industries, and is a reliable choice for completing medium and fine crushing operations.
Core working principle
The Double Roll Crusher applies huge squeezing and shearing force to the material through two high strength wear-resistant alloy rolls rotating in opposite direction. The material enters the V-shaped crushing chamber between the two rolls from the upper part of the machine, and is subject to multiple effects of extrusion, shearing and grinding, and is crushed to the required size, and finally discharged from the lower part of the machine. The granularity of the discharged material can be precisely controlled by adjusting the gap between the two rolls.
Product advantages and features
-
High efficiency and energy saving: The crushing principle is direct, high energy utilization and low energy consumption.
-
Controllable particle size: by simply adjusting the roller gap, you can easily change the size of the discharge, the product shape is good, less over-crushed phenomenon.
-
Simple and durable structure: compact structure, reliable operation, low maintenance costs, low failure rate.
-
Overload protection: Usually one of the rollers adopts spring buffer design, when encountering non-crushable materials, the rollers can automatically give way to avoid equipment damage.
-
Environmental protection and low noise: Compared with the impact crusher, the dust and noise are smaller, and the working environment is more friendly.
-
Flexible Application:Flat rolls and surfaced rolls are available to meet the needs of different materials and particle sizes.
Roll Face Options
Applicable fields
-
Mining industry: iron ore, quartzite, silica and other medium and fine crushing.
-
Building materials industry: cement clinker, limestone, ceramic raw materials crushing.
-
Metallurgy and chemical industry: coke, quicklime, fertilizer raw materials crushing.
-
Environmental protection and recycling: construction waste, steel slag crushing and recycling.
-
Energy and Power: Coal briquettes crushing before preparation of coal water slurry, pre-treatment of coal in thermal power plant.
Technical Parameters
| Model |
Roller Diameter (mm) |
Maximum feed size (mm) |
Discharge size (adjustable) (mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Reference weight (approx., kg) |
| 2PGS800 |
Φ800 |
< 40 |
0 - 8 |
10 - 30 |
22 × 2 |
~ 6000 |
| 2PGS1000 |
Φ1000 |
< 50 |
0 - 10 |
20 - 40 |
45 × 2 |
~ 10000 |
| 2PGS1200 |
Φ1200 |
< 60 |
0 - 10 |
30 - 60 |
55 × 2 |
~ 15000 |
| 2PGS1500 |
Φ1500 |
< 70 |
0 - 12 |
40 - 80 |
75 × 2 |
~ 22000 |
| 2PGS1800 |
Φ1800 |
< 90 |
0 - 15 |
80 - 120 |
90 × 2 |
~ 30000 |
| 2PGS2000 |
Φ2000 |
< 120 |
0 - 15 |
90 - 180 |
132 × 2 |
~ 45000 |
Note: The above weights are estimates, actual weights may vary depending on configuration. Please refer to the detailed technical drawings for installation dimensions.
Why choose our double roll crusher?
-
Economical: Low purchase and maintenance costs make it a cost-effective crushing solution.
-
Multi-purpose: Flexible response to a wide range of crushing needs by replacing different roll surface types and adjusting roll gap.
-
Stable and reliable: Robust construction and simple principles ensure long-term stable operation and minimize downtime.
-
Customized: We can recommend the most suitable model and roll configuration according to your specific material characteristics and capacity requirements.
